Enable Single Sign-on to Web, Mobile, and Office with Third-Party Authentication

You can enable single sign-on (SSO) authentication for the following Strategy applications using a third-party tool such as IBM Tivoli Access Manager, CA SiteMinder, Oracle Access Manager, or PingFederate^®:

• Strategy Web
• Strategy Mobile

• Strategy Web Services, to support MicroStrategy Office (IBM Tivoli Access Manager and CA SiteMinder only)

  This information applies to the legacy MicroStrategy Office add-in, the add‑in for Microsoft Office applications which is no longer actively developed.

  It was substituted with a new add‑in, Strategy for Office, which supports Office 365 applications. The initial version does not yet have all the functionalities of the previous add‑in.

  If you are using MicroStrategy 2021 Update 2 or a later version, the legacy MicroStrategy Office add-in cannot be installed from Web.

  For more information, see the Strategy for Office page in the Readme and the Strategy for Office Help.

Once a user is authenticated in the third-party system, the user's permissions are retrieved from a user directory, such as LDAP, and access is granted to the Strategy application.

In this security model, there are several layers. For example, when a user logs in to Tivoli, Tivoli determines whether the user's credentials are valid. If the user logs in with valid credentials to Tivoli, the user directory (such as LDAP) determines whether that valid user can connect to Strategy. The user's Strategy privileges are stored within the Strategy Access Control List (ACL). What a user can and cannot do within the Strategy application is stored on Intelligence Server in the metadata within these ACLs. For more information about privileges and ACLs in Strategy, see Setting Up User Security.

For Strategy to be able to get a user's privileges from the metadata, Intelligence Server must be configured to be a trusted machine in Strategy Web, Mobile, and Office. This allows the information to be passed between the two machines.

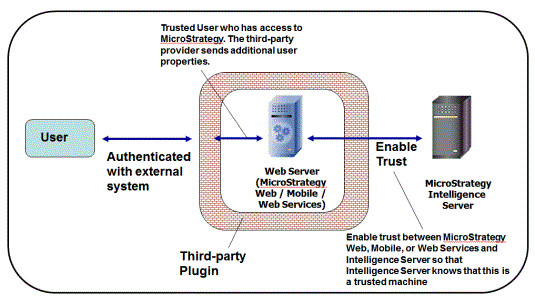

The following diagram illustrates the architecture of a security system that uses third-party authentication.

Strategy enables this type of access by passing tokens between Strategy, the user directory, and the third-party authentication provider. Properly configuring these levels of communication is critical to implementing SSO authentication.

The distinguished name of the user passed from the third-party provider is URL-decoded by default within Strategy Web, Mobile, or Web Services before it is passed to the Intelligence Server.

Single sign-on authentication performs the step of allowing a user access to Strategy products. You also must configure Strategy users to define privileges and permissions that control what a user can perform and access within the products.

Setting Up Third-Party SSO Authentication in Strategy Products

The following high-level steps are required to set up third-party SSO authentication in Strategy Web, Mobile, or Web Services, and each is detailed below:

• Creating Users and Links in Third-Party Authentication Systems
• Enabling Single Sign-On Authentication to Strategy Web, Mobile, or Office
• Importing and Linking Third-Party Authentication Users in Strategy
• To Log in to Strategy Web Using Tivoli Single Sign-On

Creating Users and Links in Third-Party Authentication Systems

Before Strategy can be configured to accept Tivoli, SiteMinder, PingFederate or Oracle Access Manager authentication, certain preliminary settings must be established. This ensures that a link exists between the authentication provider and Strategy products, and that the link is functioning as required.

You must complete all of the following steps to ensure proper configuration of your authentication provider and Strategy products.

Creating a User in Your Third-Party Authentication System

You can enable SSO authentication in Strategy by associating a Strategy user to a user in Tivoli, SiteMinder, PingFederate or Oracle Access Manager. To test this association, you must create a user in your authentication system to confirm that access has been properly configured in Strategy products.

For steps to create a new user, refer to your authentication provider's documentation.

Creating a Link to Strategy Applications in Your Third-Party Authentication System

You link Tivoli to Strategy applications using junctions, SiteMinder using Web Agents, and Oracle Access Manager using Webgates. These links redirect users from the respective provider to Strategy, and are required to enable SSO authentication. You must create one link each, as applicable, for Strategy Web, Strategy Mobile, and Strategy Web Services to support MicroStrategy Office.

Oracle Access Manager authentication is only available for Strategy Web.

For steps to create a junction (in Tivoli), a Web Agent (in SiteMinder), or a Webgate (Oracle Access Manager), refer to the product's documentation.

Enabling Single Sign-On Authentication to Strategy Web, Mobile, or Office

Once the initial third-party authentication setup is complete, you must enable trusted authentication in Strategy Web, Mobile or Office, and establish trust between the Strategy product and Intelligence Server. This allows the authentication token to be passed from one system to the other.

Note that for Strategy Web Services to support MicroStrategy Office, you must establish trust between Office and the Intelligence server, and enable trusted authentication in the configuration files for Web Services.

This section explains the following required steps to enable SSO authentication in Strategy Web, Mobile, or Web Services:

• Enabling Trusted Authentication in Strategy Web
• Enabling Trusted Authentication in Strategy Mobile
• Establishing Trust Between Strategy Web or Mobile and Intelligence Server
• Establishing Trust Between Strategy Web Services and Intelligence Server, to Support MicroStrategy Office
• Enabling Trusted Authentication in Strategy Web Services to Support MicroStrategy Office

If you use Internet Information Services (IIS) as your web server for Strategy Web or Web Services, you must enable anonymous authentication to the Strategy virtual directories to support SSO authentication to Strategy Web, Mobile, or Office. This is discussed in Enabling Anonymous Authentication for Internet Information Services.

Enabling Trusted Authentication in Strategy Web

To enable users to log in to Strategy Web using SSO authentication, you must enable trusted authentication as an available authentication mode in Strategy Web.

To Enable Trusted Authentication in Strategy Web

1. From the Windows Start menu, point to All Programs, then Strategy Tools, and then select Web Administrator.
2. On the left side of the page, click Default Properties.

3. Scroll down to the Login area and, under Login mode, select the Enabled check box next to Trusted Authentication Request. Also select the Default option next to Trusted Authentication Request, as shown below:



4. From the Trusted Authentication Providers drop-down list, select IBM Tivoli Access Manager, CA SiteMinder, PingFederate, or Oracle Access Manager.

   To use a custom authentication provider, select Custom SSO. For information about adding custom authentication providers, refer to your Strategy SDK documentation.

5. Click Save.

Using Certificate Authentication with SiteMinder

CA SiteMinder can be configured to use either certificate authentication or basic authentication. Strategy Web's siteminder_security.properties file indicates that the first SiteMinder header variable to be used is SM_UNIVERSALID. This variable provides information for certificate authentication. If this variable is empty, then the information in the variable SM_USER is used for basic authentication. For information about configuring your SiteMinder system to use certificate authentication, see the SiteMinder documentation.

Enabling Trusted Authentication in Strategy Mobile

To enable users to log in to Strategy Mobile using SSO authentication, you must enable trusted authentication as an available authentication mode in Strategy Mobile. For instructions on configuring mobile devices to use trusted authentication, refer to the Administering Strategy Mobile section in the Strategy Mobile Administration Help.

To Enable Trusted Authentication in Strategy Mobile

1. From the Windows Start menu, point to All Programs, then Strategy Tools, and then select Mobile Administrator.
2. On the left side of the page, click Default Properties.
3. From the Trusted Authentication Providers drop-down list, select IBM Tivoli Access Manager, CA SiteMinder, PingFederate, or Oracle Access Manager.

   To use a custom authentication provider, select Custom SSO. For information about adding custom authentication providers, refer to your Strategy SDK documentation.

4. Click Save.

To create a mobile configuration to send to users' mobile devices, refer to the Administering Strategy Mobile section in the Strategy Mobile Administration Help.

Establishing Trust Between Strategy Web or Mobile and Intelligence Server

To enable the authentication token to pass from your third-party authentication provider to Strategy Web or Mobile, and then to Intelligence Server, a trust relationship must be established between Strategy Web or Mobile and Intelligence Server. The steps to establish trust are described below.

If you need to delete an established trust relationship, see To Delete a Trust Relationship.

If you are using multiple Intelligence Server machines in a cluster, you must first set up the cluster, as described in Cluster Multiple Strategy Servers, and then establish trust between Web or Mobile Server and the cluster.

For information on assigning privileges to users, see Controlling Access to Functionality: Privileges.

To Establish Trust Between Strategy Web or Mobile and Intelligence Server

1. Open Strategy Web Administrator or Strategy Mobile Administrator, as applicable:
• From the Windows Start menu, point to All Programs, then Strategy Tools, and then select Web Administrator.
• From the Windows Start menu, point to All Programs, then Strategy Tools, and then select Mobile Administrator.
2. On the left, click Servers.
3. Confirm that Strategy Web or Mobile Server is currently connected to an Intelligence Server. If an Intelligence Server is not connected, in the Unconnected Servers table, under Action, click Connect for the appropriate Intelligence Server.

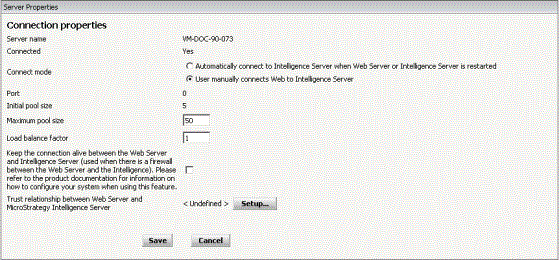

4. In the Connected Servers table, under Properties, click the Modify icon .



5. Next to Trust relationship between Web/Mobile Server and Strategy Intelligence Server, as applicable, click Setup.
6. Type a User name and Password in the appropriate fields. The user must have administrative privileges for Strategy Web or Mobile, as applicable.
7. From the options provided, select the authentication mode used to authenticate the administrative user.

8. In the Web Server Application or Mobile Server Application field, type a unique name for the trust relationship.

   For example, you can use the URLs for the applications using Tivoli, as follows:

   Strategy Web: https://MachineName/JunctionName/MicroStrategy/asp

   Strategy Mobile: https://MachineName/JunctionName/MicroStrategyMobile/asp

9. Click Create Trust Relationship.
10. Click Save.

To Verify the Trust Relationship

1. From the Windows Start menu, point to All Programs, then Strategy Products, and then select Developer.
2. Log in to a project source as a user with administrative privileges.
3. From the Administration menu, point to Server, and then select Configure Strategy Intelligence Server.
4. On the left, expand the Web Single Sign-on category, and verify that the trusted relationship is listed in the Trusted Web Application Registration list.
5. Click OK.

To Delete a Trust Relationship

1. Open Strategy Web Administrator or Strategy Mobile Administrator, as applicable:
• From the Windows Start menu, point to All Programs, then Strategy Tools, and then select Web Administrator.
• From the Windows Start menu, point to All Programs, then Strategy Tools, and then select Mobile Administrator.
2. On the left, click Servers.
3. Confirm that Strategy Mobile is currently connected to an Intelligence Server. If an Intelligence Server is not connected, in the Unconnected Servers table, under Action, click Connect for the appropriate Intelligence Server.
4. In the Connected Servers table, under Properties, click the Modify icon .

5. Next to Trust relationship between Strategy Web/Mobile Server and Strategy Intelligence Server, as applicable, click Delete.



6. Provide your login information in the appropriate fields.
7. Click Delete trust relationship.



8. Click Save.

Establishing Trust Between Strategy Web Services and Intelligence Server, to Support MicroStrategy Office

To establish trust between MicroStrategy Office and Intelligence Server, you must use MicroStrategy Office to connect to the project source you want to use trusted authentication for, and then establish the trust relationship between Office and the Intelligence Server. Once you have completed this step, you must edit the projectsources.xml file for Web Services to enable trusted authentication for the project source. Both procedures are described below.

To Establish Trust Between Strategy Web Services and Intelligence Server

1. On a machine where MicroStrategy Office is installed, open a Microsoft Office product, such as Excel.
2. In the Microsoft Office ribbon, under the MicroStrategy Office tab, click MicroStrategy Office. MicroStrategy Office starts, with a list of project sources you can connect to.
3. From the list of project sources on the left, select the project source you want to enable trusted authentication for.
4. In the right pane, enter the login ID and password for a user with administrative privileges, and click Get Projects. A list of projects is displayed.
5. Select any project, and click OK.
6. In the MicroStrategy Office toolbar, click Options.
7. Under the General category, select Server.
8. Next to Trust relationship between Web Services and Intelligence Server, click Create.

To Use the Third-Party Authentication URL for Web Services

1. In the Web Services URL field, enter the URL for the Tivoli Junction or SiteMinder Web Agent, as applicable, that you created for Strategy Web Services.
2. Click OK.

Enabling Trusted Authentication in Strategy Web Services to Support MicroStrategy Office

To allow users to log in to MicroStrategy Office using single sign-on (SSO), you must do the following:

• Edit the web.config file for Web Services or MWSConfig.properties file for J2EE application servers, to choose a trusted authentication provider.
• Edit the projectsources.xml file for Strategy Web Services and configure the project source to use a third-party security plug-in. For additional information on the settings in the projectsources.xml file, see Determining How Users Log Into MicroStrategy Office in the legacy MicroStrategy Office User Guide.

To Enable Trusted Authentication in MicroStrategy Office

To Choose a Trusted Authentication Provider

1. Depending on your Web Services environment, on the machine where Strategy Web Services is installed, do one of the following:
• If you are using IIS as your application server, open the web.config file in a text editor, such as Notepad. By default, the file is located in C:\Program Files (x86)\MicroStrategy\Web Services.
• If you are using Web Services in a J2EE-compliant application server, open the MWSConfig.properties file in a text editor, such as Notepad. By default, the file is located in the folder where your application server deploys Web Services.
2. Depending on your Web Services environment, do the following:

3. In the web.config file, locate the following line:

   <add key="TRUSTEDAUTHPROVIDER" value="1" />

4. In the MWSConfig.properties file, locate the following line:

   TRUSTEDAUTHPROVIDER=1

5. Change value or TRUSTEDAUTHPROVIDER, as applicable, to one of the following, as applicable:
• To use Tivoli as the authentication provider, type 1.
• To use SiteMinder as the authentication provider, type 2.
• To use a custom authentication provider, type 3.

If you are using a custom authentication provider, you must make additional modifications to the custom_security.properties file, which is located by default in C:\Program Files (x86)\MicroStrategy\Web Services\resources. For information on these modifications, refer to the MicroStrategy Developer Library (MSDL).

To Configure Web Services to Use Trusted Authentication

1. On the machine where Strategy Web Services is installed, open the projectsources.xml file in a text editor, such as Notepad. By default, the file is located in C:\Program Files (x86)\MicroStrategy\Web Services.
2. In the projectsources.xml file, locate the <ProjectSource> tag describing the project source you want to enable SSO for.

3. In the <ProjectSource> tag, replace the content of the <AuthMode> tag with MWSSimpleSecurityPlugin. The contents of the new <ProjectSource> tag should appear similar to the following:

   Copy

   <ProjectSource>
   <ProjectSourceName>Name</ProjectSourceName>
   <ServerName>Name</ServerName>
   <AuthMode>MWSSimpleSecurityPlugIn</AuthMode>
   <PortNumber>0</PortNumber>
   </ProjectSource>

4. Save projectsources.xml.

Enabling Anonymous Authentication for Internet Information Services

If you use Internet Information Services (IIS) as your web server, you must enable anonymous authentication to the Strategy virtual directory to support SSO authentication to Strategy Web, Web Services or Mobile.

The steps to perform this configuration are provided below, which may vary depending on your version of IIS. Click here to find more information about using anonymous authentication with IIS.

• IIS 7
• IIS 8
• IIS 10

You cannot use Windows authentication to authenticate users in Strategy Web or Mobile if you enable anonymous authentication to the Strategy virtual directory in IIS. The steps below should only be used as part of an SSO authentication solution with Tivoli.

To Configure IIS to Enable Anonymous Authentication to the StrategyWeb, Web Services, and Mobile Virtual Directories

1. On the Strategy Web server machine, access the IIS Internet Service Manager.
2. Browse to and right-click the Strategy virtual folder and select Properties.
3. On the Directory Security tab, under Anonymous access and authentication control, click Edit.
4. Select the Allow anonymous access check box.
5. Click OK.
6. Click OK.
7. To enable anonymous authentication to Strategy Web Services, repeat the above procedure for the StrategyWS virtual directory.
8. To enable anonymous authentication to Strategy Mobile, repeat the above procedure for the StrategyMobile virtual directory on the Mobile Server machine.
9. Restart IIS for the changes to take effect.

Importing and Linking Third-Party Authentication Users in Strategy

For third-party authentication users to access Strategy applications, the users must be granted Strategy privileges. Whether the LDAP DN is sent in the request to Intelligence Server is configured when the Tivoli junction or SiteMinder Web Agent is created. For details about creating a junction or Web Agent, refer to your Tivoli or SiteMinder documentation.

A Tivoli or SiteMinder user can be:

• Imported as a new Strategy user upon logging in to Strategy Web, which assigns the user privileges that are defined for the Strategy user. For steps to perform this configuration, see Importing Tivoli Users as Strategy Users.
• Allowed guest access to Strategy Web. The Tivoli user inherits the privileges of the Public/Guest group in Strategy. Guest access to Strategy Web is not necessary for imported or linked Tivoli users. For steps to perform this configuration, see Enabling Guest Access to Strategy Web or Mobile for Tivoli Users.

A Tivoli or SiteMinder user can also be associated with an existing Strategy user, using the Strategy User Editor. Associating Tivoli users rather than enabling Tivoli users to be imported when they log in to Strategy Web enables you to assign Strategy privileges and other security settings for the user prior to their initial login. For steps to perform this configuration, see Linking Tivoli Users to Existing Strategy Users.

If a Tivoli or SiteMinder user has already been imported into Strategy, and a Strategy user has been associated with the Tivoli or SiteMinder user, the Strategy metadata is synchronized with the information from the user directory, such as the LDAP server. The way this synchronization takes place depends upon several factors.

Importing Tivoli Users as Strategy Users

When Strategy is configured to import a Tivoli user, the Tivoli user is imported as a Strategy user the first time that the user logs in to Strategy Web after the configuration is completed. A Tivoli user is imported into Strategy only if the Tivoli user has not already been imported as or associated with a Strategy user.

When a Tivoli user is imported into Strategy:

• The Tivoli user name is imported as the trusted authentication request user ID for the new Strategy user.
• The Strategy user is added to the Everyone group by default. If no privileges are defined through a user directory such as LDAP, then the imported user inherits the privileges associated with the Strategy Everyone group.
• Security privileges are not imported from Tivoli; these must be defined in Strategy by an administrator.

To iImport Tivoli Users as Strategy Users

1. From the Windows Start menu, point to All Programs, then Strategy Products, and then select Developer.
2. Log in to a project source as a user with administrative privileges.
3. From the Administration menu, point to Server, and then Configure Strategy Intelligence Server.
4. On the left, expand the Web Single Sign-on category.
5. On the right, select the Import user at login check box.
6. Click OK.

Linking Tivoli Users to Existing Strategy Users

As an alternative to importing users, you can link (or associate) Tivoli users to existing Strategy users to retain the existing privileges and configurations defined for the Strategy users. Linking Tivoli users rather than enabling Tivoli users to be imported when they log in to Strategy Web enables you to assign privileges and other security settings for the user prior to their initial login.

To Link Tivoli Users to Existing Strategy Users

1. From the Windows Start menu, point to All Programs, then Strategy Products, and then select Developer.
2. Log in to a project source as a user with administrative privileges.
3. In the folder list on the left, expand Administration, and then expand User Manager.
4. Browse to the Strategy user to link to a Tivoli user.
5. Right click the user and select Edit.
6. Expand Authentication, then select Metadata.
7. Under Trusted Authentication Request, in the User ID field, type the Tivoli user name to link to the Strategy user.

   The name you type in the User ID field should be the same as the one that the user employs when providing their Tivoli login credentials.

8. Click OK.

Enabling Guest Access to Strategy Web or Mobile for Tivoli Users

If you choose to not import or link Tivoli users to a Strategy user, you can enable guest access to Strategy Web for the Tivoli users. Guest users inherit their privileges from the StrategyPublic/Guest group.

Logging in to Strategy Web Using Tivoli Single Sign-On

Once all of the preliminary steps have been completed and tested, users may begin to sign in to Strategy using their Tivoli credentials. Sign-on steps are provided in the procedure below.

To Log in to Strategy Web Using Tivoli Single Sign-On

1. Open a web browser.
2. Type the following URL in the address field: https://MachineName/JunctionName/MicroStrategyWebURL

   Where the variables in italics are as follows:

   • MachineName is the name of the machine running Tivoli.
   • JunctionName is the name of the junction created in Tivoli.
   • MicroStrategyWebURL is the URL to access Strategy Web. For example, MicroStrategy/asp.
3. Type your Tivoli user name and password.
4. Connect to a Strategy project.
5. Click Trusted Authentication.

   You are logged in to the Strategy project with your Tivoli user credentials.

   If you are prompted to display both secure and non-secure items on the web page, you can configure your web browser to hide this warning message. Refer to your web browser documentation regarding this configuration.
